Laminated VIP + PU vacuum insulated panel temperature controlled cold chain packaging, with patented interlocking PCM technology, to adopt Integrated molding technology to achieve high insulation performance up to 96 hours and save transportation cost.
Combined with PCM rigid gels, it allows to keep pharmaceutical products at precise temperature ranges:
• Range of fresh health products between 2°C and 8°C with PCM +5 gels
• Range of ambient health products between 5°C and 25°C with PCM +18 gels
• Frozen range below -18°C with eutectic gels -20
• Ultra-low temperature range below -80°C using dry ice

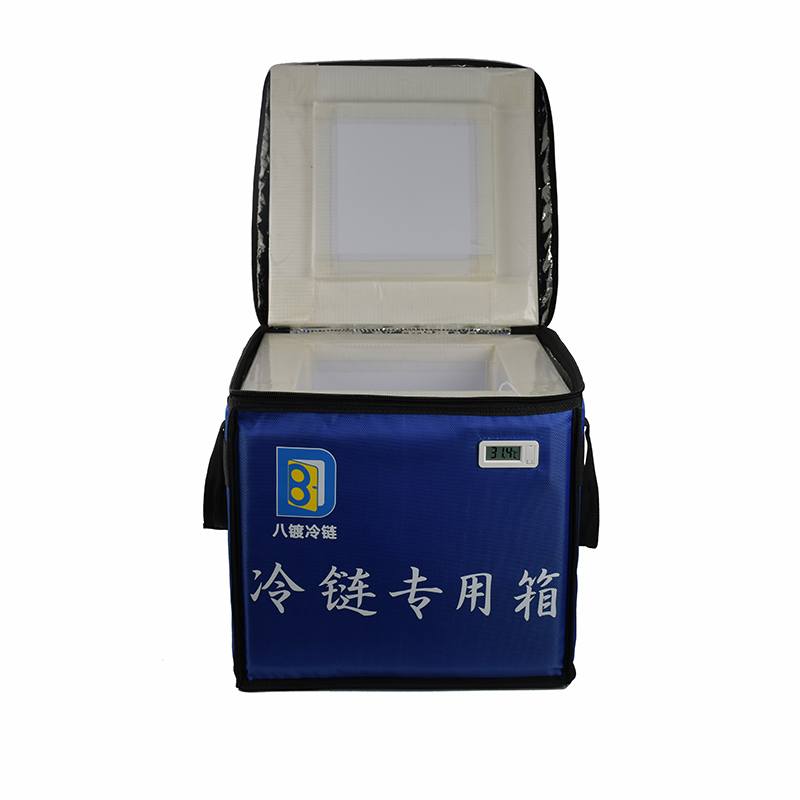

Medical Cold Chain Ice Box Vaccine Carrier Transfer Cooler Box
1. Specification of medical cooler box
|
Category |
Medical cooler box |
|
Main Material |
Outer Material: Durable polyester cover Inside Material: VIP+PU high performance insulation panel |
|
Application |
Medical, vaccine, blood storage and transport |
|
Dimension |
Outer Dimension:310x310x310mm Inner Dimension:230x230x230mm |
|
Capacity |
Payload capacity:12L |
|
Cold source |
Ice Pack:6pcs combine cube: ice bricks size: 380*380*30mm |
|
Cold life |
keep 2 deg C to 8 deg C for more than 72 hours at ambient temperature of - 25deg C to +35 deg C. |
2.Usage
The medical cooler box is specially designed for the transport and/or storage of temperature sensitive products such as vaccines, insulin injection pens, oncology products, blood derivatives (plasma, red blood cells, platelets, whole blood), products for treatment of glaucoma or autoimmune diseases, biotechnology products; tissues and organs; breast milk, tissue, urine samples, etc.
Application:
Medical transport cooler box s used by hospitals, medical analysis laboratories, pharmaceutical companies, medical transport professionals, pharmaceutical distributors, pharmacies, home nursing offices.
3.Performance

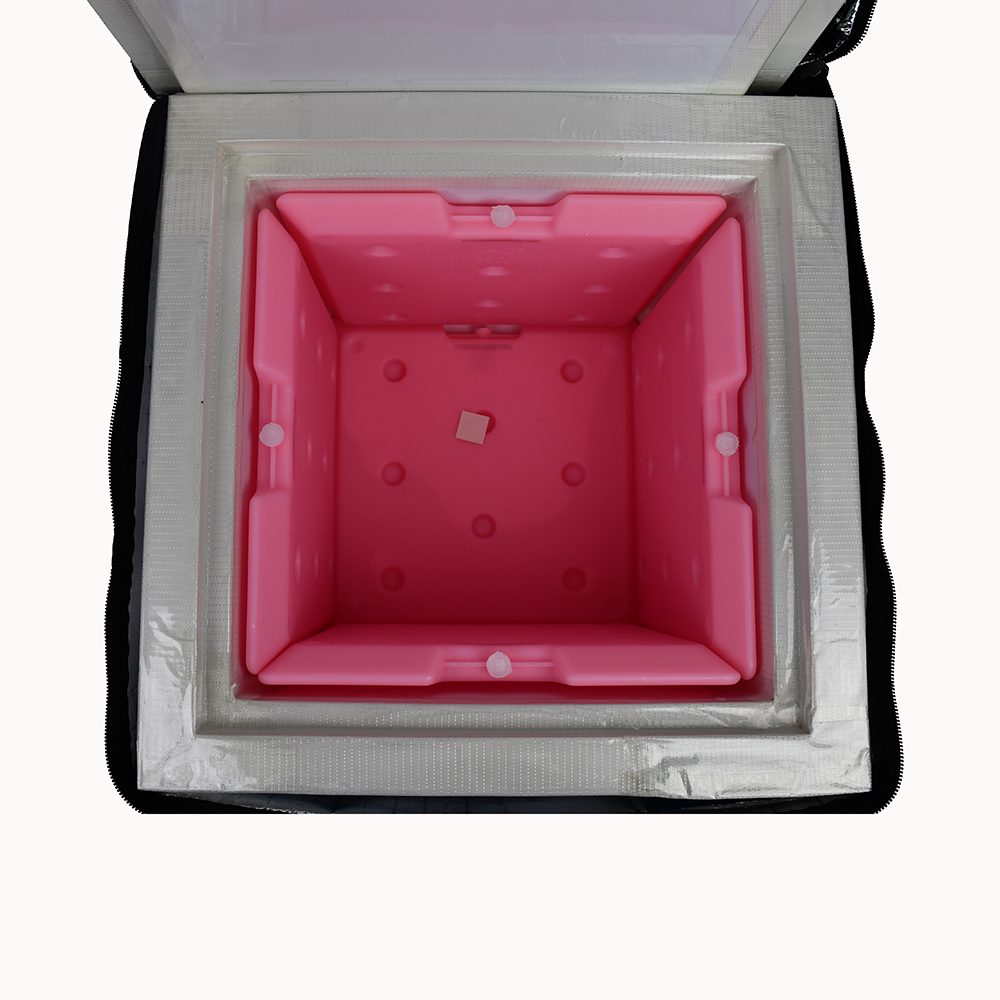

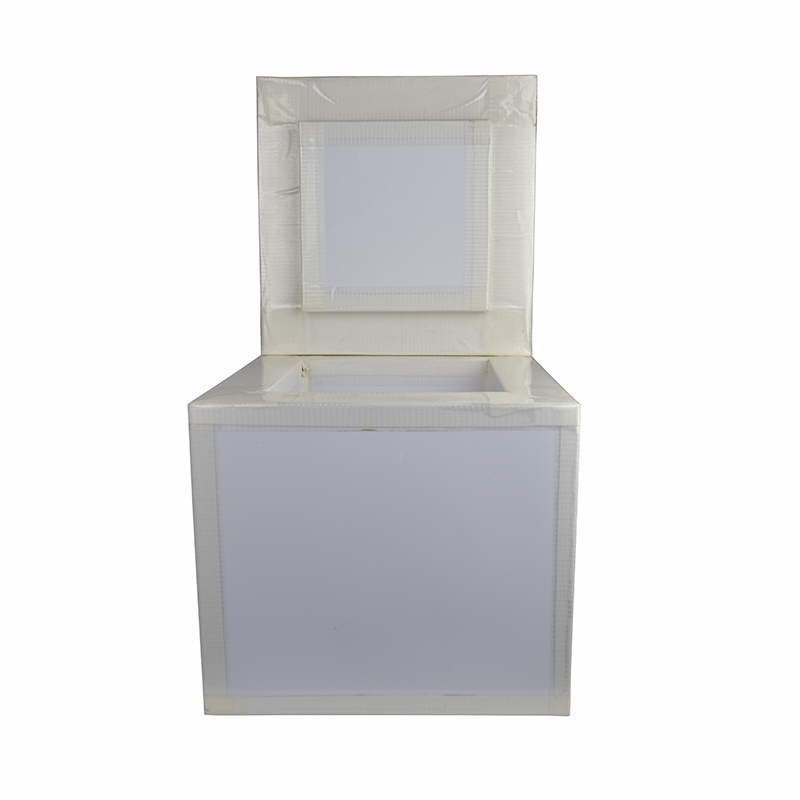

Medical transport cooler box guarantees that the temperature of your temperature-sensitive medical products is maintained. This medical cooler is designed with a high-performance insulating material: combine polyurethane and vacuum insulation panel (VPU insulation). With a very low thermal conductivity, the VPU insulation strongly limit heat entry inside your cooler.
Laminated VIP + PU vacuum insulated panel temperature controlled cold chain packaging, with patented interlocking PCM technology, to adopt Integrated molding technology to achieve high insulation performance up to 96 hours and save transportation cost. Combined with PCM rigid gels, it allows to keep pharmaceutical products at precise temperature ranges:• Range of fresh health products between 2°C and 8°C with PCM +5 gels• Range of ambient health products between 5°C and 25°C with PCM +18 gels• Frozen range below -18°C with eutectic gels -20• Ultra-low temperature range below -80°C using dry ice
