Portable Travel Medicine Cooler Vaccine Box Tertiary Container

Portable Travel Medicine Cooler Vaccine Box Tertiary Container

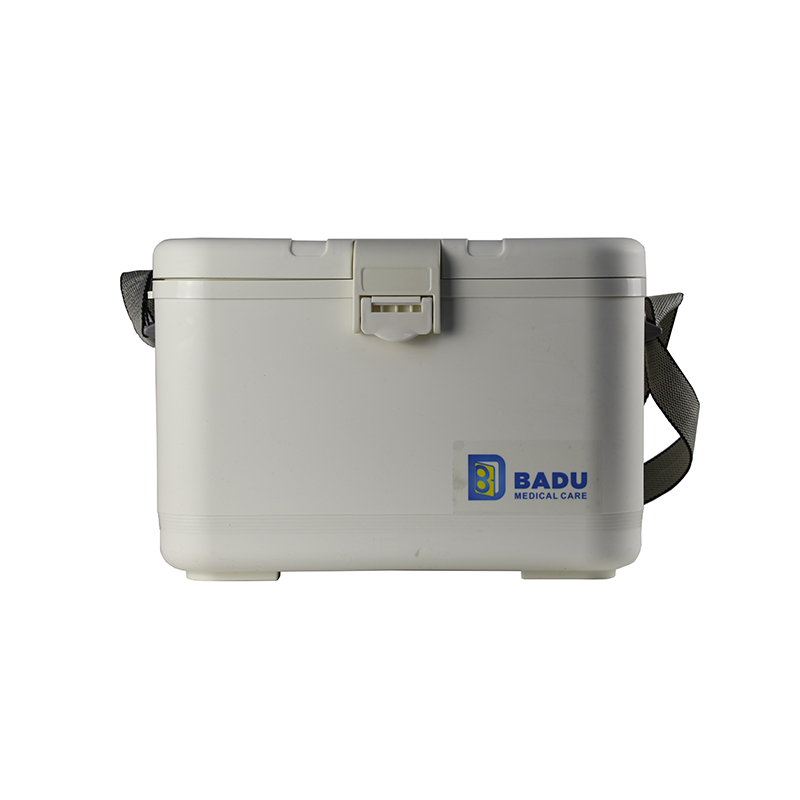

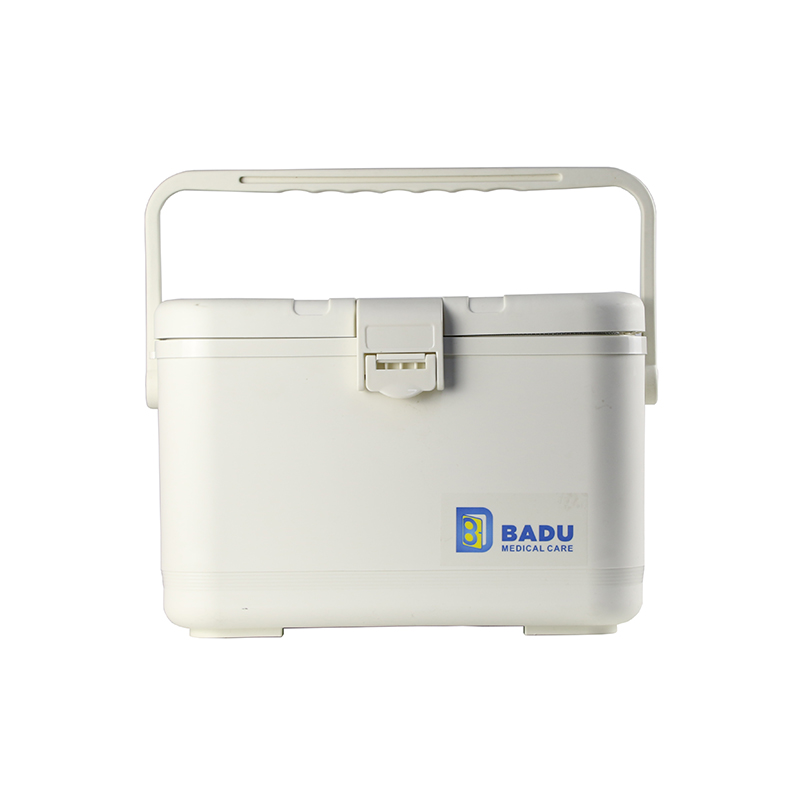

5L Portable Travel Medicine Cooler Vaccine Box Tertiary Container

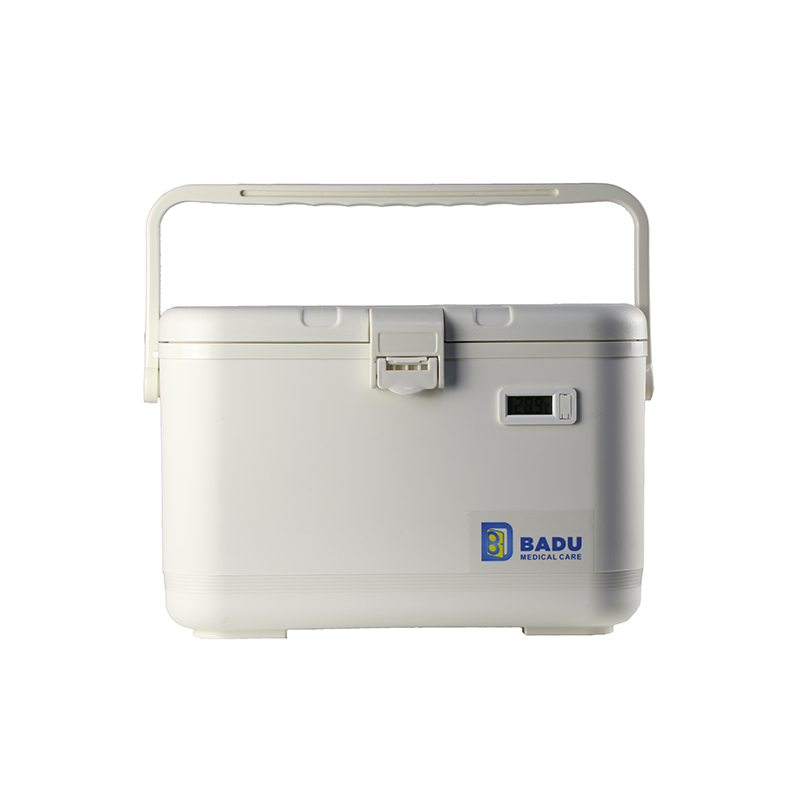

LCD temperature display

Storage capacity: 6L

Cold life without opening(hours at 43°C: 36hours

Feature:

①Made of food grade material, outer shell is PP, liner is PP. Non-toxic harmless, anti UV, and not fade.

②Foaming by CFC free PU (polyurethane), without any chemical material, protect the environment well.

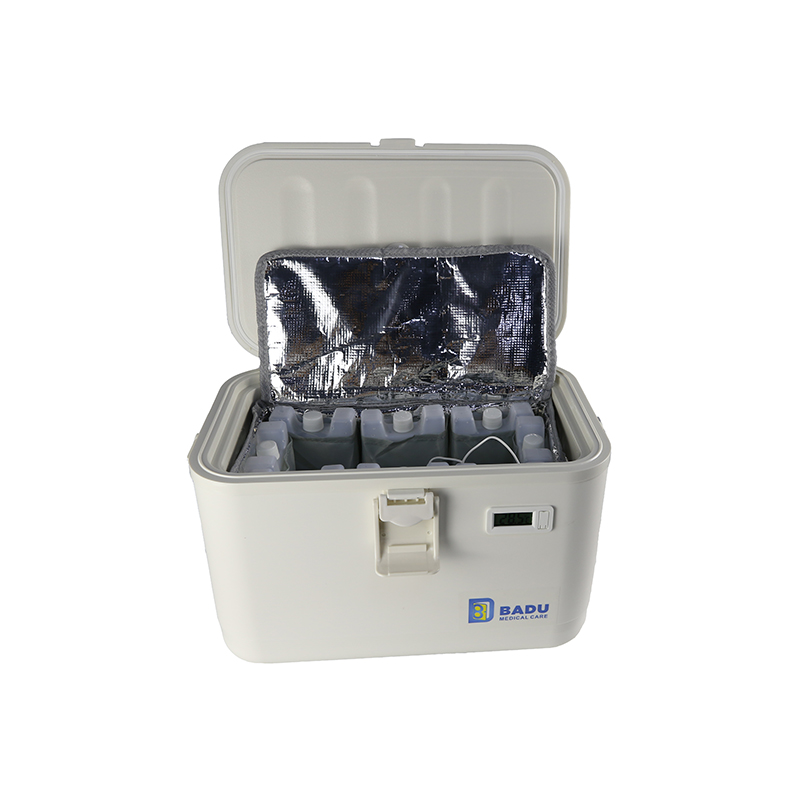

③Fixed ice pack of aluminum foil bag makes partition storage space. It’s more convenient for operation.
④You can carry it by the handle or by belt for choice.
⑤With the good performance of sealing ring, it can keep the cold life more efficiency.
  • Order(MOQ) :

    1
  • Payment :

    T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow
  • Product Origin :

    China
  • Color :

    beige
  • Shipping Port :

    Xiamen Port
  • Lead Time :

    7 days
  • Item Name :

    Vaccine Carrier
  • Item No :

    BD8012
  • logo :

    Can be customized

5L Portable Travel Medicine Cooler Vaccine Box Tertiary Container

Medicine cooler vaccine box are insulated containers that, when lined with coolant packs, keep vaccines and diluents cold during transportation.

Vaccine box are smaller than cold boxes and are easier to carry when walking.

These products are used for transporting vaccines from health facilities with refrigeration to outreach immunization sessions where refrigeration and ice are not available.

Vaccine carriers are typically carried by a single health worker travelling on foot or by other means, where the combined journey time and immunization activity may range from a few hours to a whole day.



Product Technical Specifications

Usable cold space dimension(cm): 23*12*19.5cm External/Internal Moulding(Injection Mouldings): *PP EPC30R-H
Usable cold space capacity(L): 5.38Liters Lid Moulding(Internal & External Injection Mouldings) *PP EPC30R-H
Weight fully loaded(kg): 8.19kg Insulation Material: Polyurethanes
Weight empty(kg): 2.6kg Liner Material:  PVC/Aluminum Foil Laminate, NBR thermal insulation
External dimension(L*W*H cm) 40*25*26cm Type of ice bricks required: water packs
Internal dimension(L*W*H cm) 30*19*20cm Bricks dimension:

8pcs BDBH360,

160*95*30cm

cold life at +43°C: 24hours  Ice bricks supplied:  YES
Warm life at -10°C: 20 hours Lid type and fixing Fixed hinges
Cool life at 30°C: 36hours Digital Thermometer

At user option

(recommended)





Customized Service

FAQ


Q1: What is a medicine cooler?

A1: Medical travel coolers are compact and portable devices that can keep your medication at the perfect temperature for hours, making travel with medical necessities a breeze.

Q2: Number of ice packs in vaccine carrier?

A2: 8pcs 0.4L ice packs.

Q3: What container is used to store vaccines?

A3: A vaccine carrier cold box is an insulated container that can be lined with pre-conditioned ice packs to keep vaccines and diluents cold---but not frozen---during transportation of vaccine supplies from the health center, or to outreach sites.

Q4: What kind of certificate do you have?

A4: MSDS,ISO,CE,WHO...

Q5: What is a vaccine carrier box called?

A5: A Vaccine Carrier (also known as Ice box or Insulation Box) is a portable equipment, which helps in keeping perishable items cool and fresh for a long period while also preserving Vaccines and Biological samples.

Q6: What are ice packs used for in vaccine carrier?

A6:Ice packs are plastic containers filled with water. These are hard frozen in the deep freezer. They are placed inside a vaccine carrier and cold box to improve and maintain the holdover time.
