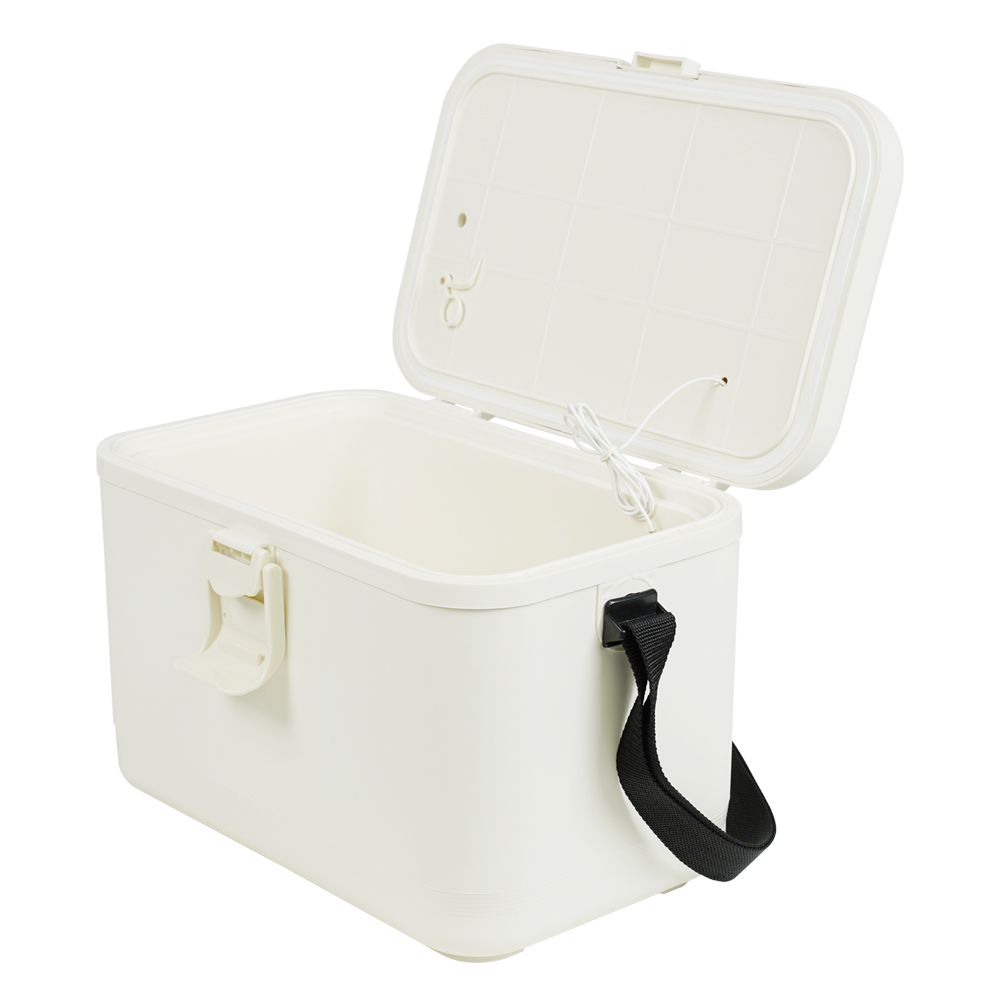

3L Portable Small Vaccine Carrier Box

3L Portable Small Vaccine Carrier Box

3L Portable Small Vaccine Carrier Box

BADU Vaccine carriers & Cold Boxes are designed for temporary storage and transport of donor blood and organs, vaccines and medical products that require safe temperature range inside the container. Safe temperature ranges inside the vaccine carriers are controlled with ice packs typically conditioned and specifically handled. The insulating materials have high mechanical robustness, relatively small weight and high heat insulation properties.

MOQ is 1pcs.

Goods are available.

  • Order(MOQ) :

    1
  • Payment :

    T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow
  • Product Origin :

    China
  • Color :

    beige
  • Shipping Port :

    Xiamen Port
  • Lead Time :

    7 days
  • Item Name :

    Vaccine Carrier
  • Item No :

    BD8008
  • logo :

    Can be customized

3L Portable Small Vaccine Carrier Box

Vaccine carriers are generally used to transport vaccine in individual vials. The net dimensions of the storage compartment (length, width and height, with water/gel packs in place) must be able accommodate all types of pre-filled vaccine presentation and the complete range of standard vaccine vials and ampoules up to 50 dose size.

Vaccine carriers must be designed so that they can easily be strapped upright to the luggage rack of a bicycle or light motorcycle.



All vaccine carriers must be designed so that they can comfortably be carried, when fully loaded, for periods of several hours by a male or female health worker wearing traditional dress. Backpack units may be incompatible with some types of clothing.



Feature:

①Made of food grade material, outer shell is PP, liner is PP. Non-toxic harmless, anti UV, and not fade.

②Foaming by CFC free PU (polyurethane), without any chemical material, protect the environment well.
③Fixed ice pack of aluminum foil bag makes partition storage space. It’s more convenient for operation.
④You can carry it by the handle or by belt for choice.
⑤With the good performance of sealing ring, it can keep the cold life more efficiency.


Product Technical Specifications
Product name Vaccine carrier
Item number BD8008
Construction Rigid injection style
Empty weight of vaccine carrier(kg)-container plus filled water/gel packs, without payload 4.1kg
Fully loaded weight of vaccine carrier (kg) - container plus filled water/gel packs, with payload Should be less than 7kg
External dimensions of vaccine carrier - length x width x height (mm)

340*210*240 mm

Internal vaccine storage compartment dimensions - length x width x height (mm) 214*85*162mm
Vaccine storage capacity in Liters 3 Liters
Number of water/gel packs used during normal operation of device 6 pcs
Number of water/gel packs provided/shipped with device 6 pcs
External dimensions of water/gel pack - length x width x height (mm) 170*100*30mm
Weight of water/gel pack filled with coolant (kg) 0.4
Is the water/gel pack permanently sealed or refillable? Can be refillable
Is the water/gel pack shipped to the customer empty or pre-filled with coolant? Pre-filled with coolant
Rated Cold life in hours is more than 24 hours) The empty container is stabilized at +43°C and loaded with water/gelpacks frozen at -20°C and a full payload. Cold life is measured from the moment when the container lid is closed until the temperature of the warmest point in the vaccine storage compartment first rises above +10°C again, at a constant ambient temperature of +43°C.
Rated Warm life in hours The empty container is stabilized at +18°C and loaded with water/gel packs which have been stabilized at +18°C and a full payload. Warm life is measured from the moment when the container is closed, until the temperature of the coldest point inside the vaccine storage compartment first reaches 0°C at a constant ambient temperature of -20°C.
The type of carrying device provided with vaccine carrier Plastic Carrying handle or Shoulder strap for choice
Material complies with clause Materials used in the construction of the product must resist UV degradation, must be easy to clean and must be selected with environmentally safe end-of life disposal in mind. Chlorinated plastics and composites containing epoxy resins are not permitted.
Outer Packing complies the clause Materials used for packaging the finished product are to be free of ozone depleting compounds as defined in the Montreal Protocol. The general specification of shipping containers will be subject to agreement with the individual procurement agencies.
Warranty complies with clause The product must covered by a two-year replacement warranty in the event of any component failure arising from defective design, materials or workmanship.



Customized Service

FAQ


Q1: What is the safe temperature range for handling and storing vaccines?

A1: Safe vaccine storage and handling is essential to ensure that the 'cold chain' that refrigerates the vaccine at a temperature between +2°C and +8°C is maintained from manufacture, through delivery and storage, to patient administration.



Q2: Number of ice packs in vaccine carrier?

A2: 6pcs 0.4L ice packs.



Q3: What container is used to store vaccines?

A3: A vaccine carrier cold box is an insulated container that can be lined with pre-conditioned ice packs to keep vaccines and diluents cold---but not frozen---during transportation of vaccine supplies from the health center, or to outreach sites.



Q4: What kind of certificate do you have?

A4: MSDS,ISO,CE,WHO...



Q5: What is a vaccine carrier box called?

A5: A Vaccine Carrier (also known as Ice box or Insulation Box) is a portable equipment, which helps in keeping perishable items cool and fresh for a long period while also preserving Vaccines and Biological samples.



Q6: What are ice packs used for in vaccine carrier?

A6:Ice packs are plastic containers filled with water. These are hard frozen in the deep freezer. They are placed inside a vaccine carrier and cold box to improve and maintain the holdover time.
